Understanding MPO Fiber Connector Wiring Color Codes
In the realm of fiber optic technology, Multi-fiber Push On (MPO) connectors play a crucial role in managing and maximizing data transmission capabilities. However, collaborating with these connectors can be complex, particularly when it comes to understanding the wiring color codes associated with various fibers. This article addresses the perplexity surrounding MPO connector wiring color codes, unraveling their significance and usage. Knowing these codes is essential for anyone involved in the installation, maintenance, or troubleshooting of fiber optic networks. Misconceptions often arise around the usage of colors, which can lead to improper connections and potential data loss. Through this article, readers will gain a comprehensive grasp of MPO fiber connector wiring color codes, the systematic organization of fiber strands, and practical insights to ensure accurate implementation.
The Basics of MPO Connectors

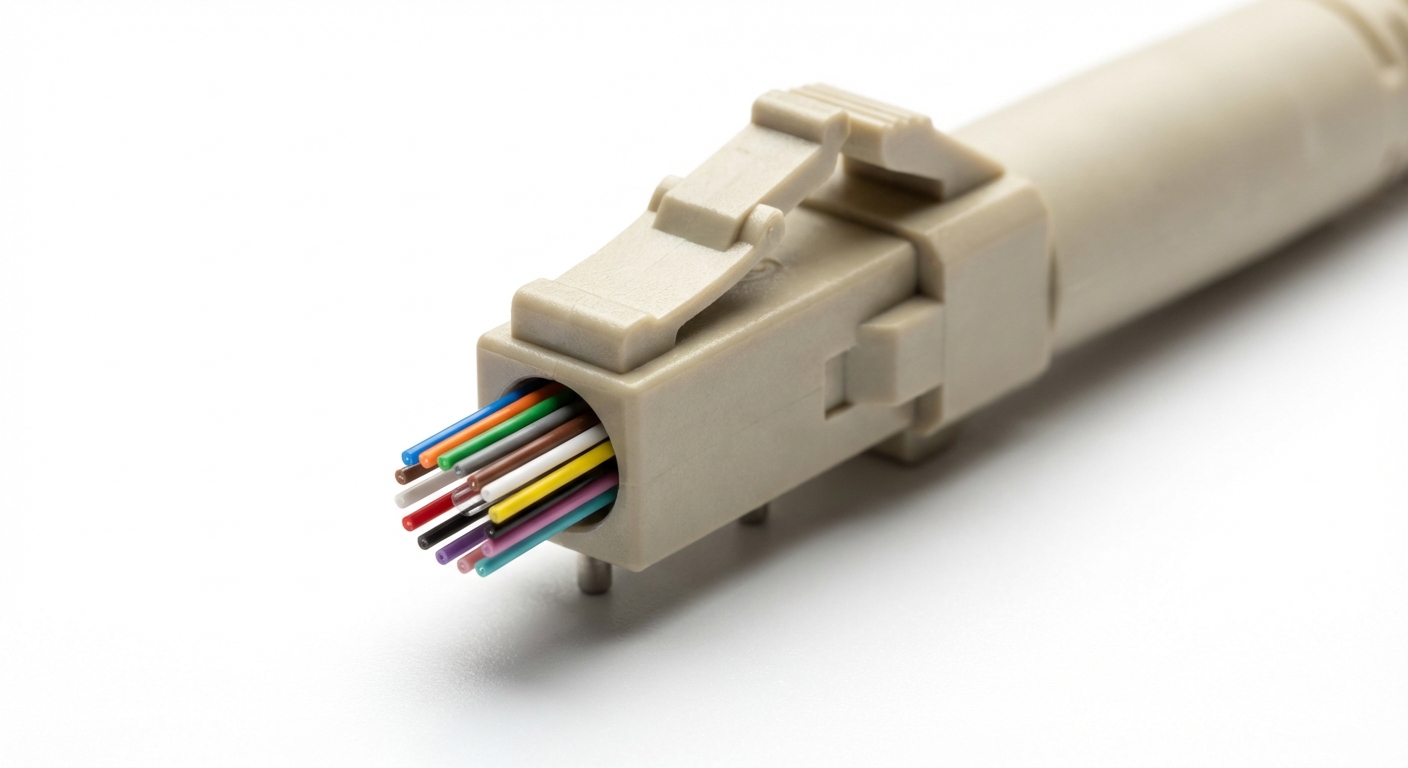

MPO connectors are designed to accommodate multiple fibers in a single connector housing, allowing for compact yet efficient connection systems in high-density environments. These connectors typically feature 12 or 24 fibers, with variants available for even larger configurations, such as 16-fiber connectors.
MPO connectors consist of a main plastic body, generally black, which is distinguished based on the color coding of its shells. For instance, single-mode fibers often have a green shell while multimode fibers use yellow or another specific color to denote their type.
MPO Fiber Color Codes Overview
The MPO fiber connector wiring color codes follow a defined, systematic coloration that assists technicians in identifying the function of each fiber strand. At present, the standard color codes for MPO connectors include:
You may also like

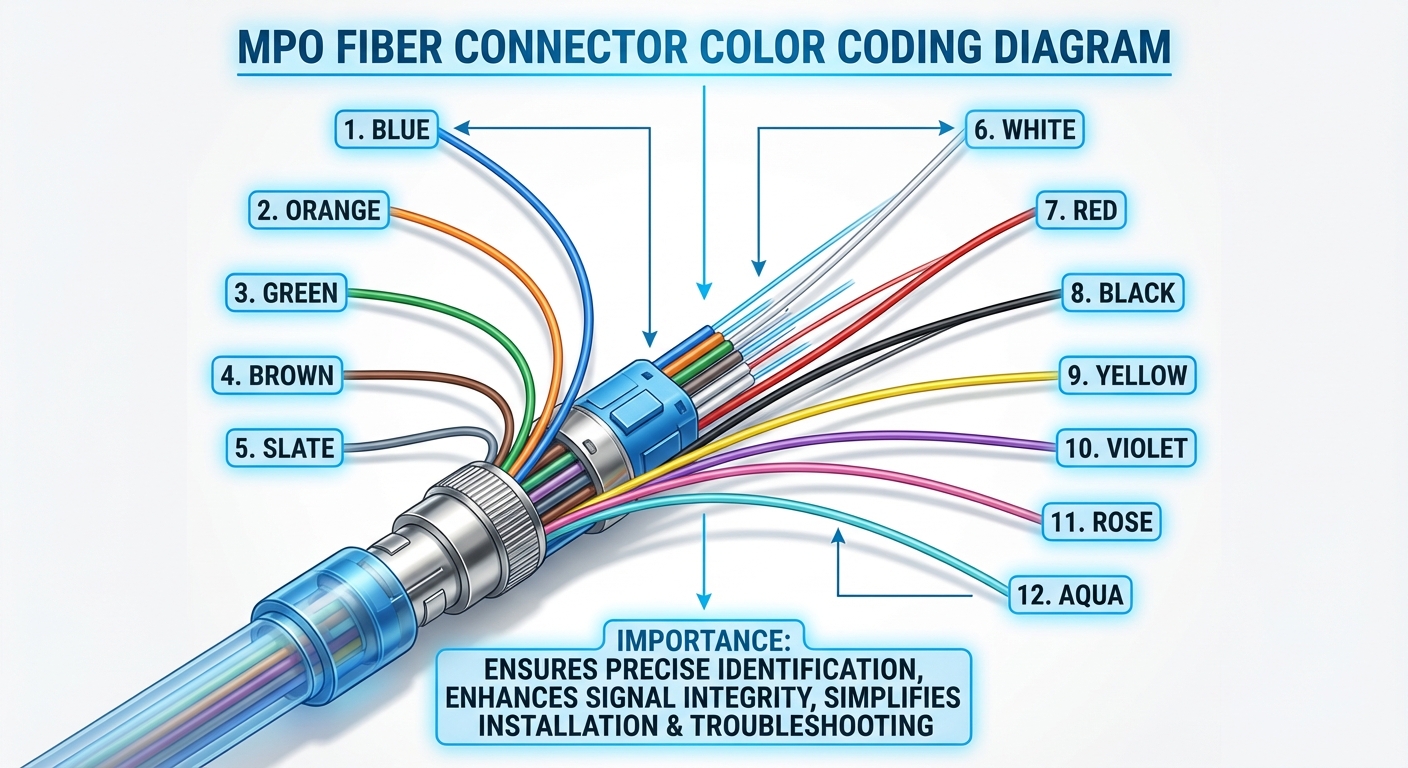

- 1: Blue
- 2: Orange
- 3: Green
- 4: Brown
- 5: Slate
- 6: White
- 7: Red
- 8: Black
- 9: Yellow
- 10: Violet
- 11: Rose
- 12: Aqua
- 13: Olive (16 fiber connectors only)
- 14: Magenta (16 fiber connectors only)
- 15: Tan (16 fiber connectors only)
- 16: Lime (16 fiber connectors only)
The Importance of Color Coding in MPO Connectors
The color coding system is not arbitrary; rather, it is an essential safety and efficiency measure. By adhering to these color codes, technicians can:
- Quickly identify specific fibers within the MPO connector, minimizing errors during installation or maintenance.
- Ensure the correct alignment of fibers, which can significantly impact signal integrity and data transmission rates.
- Facilitate troubleshooting processes when issues arise, as known color codes can guide technicians directly to potential problem areas.
MPO and MTP Connectors: Similarities and Differences
MPO (Multi-fiber Push On) and MTP (Mechanical Transfer Push On) connectors are often discussed interchangeably, but they possess some key differences. MTP connectors are essentially a proprietary version of the MPO design, featuring enhanced performance specifications and improvements, such as a more precise keying mechanism. Below is a simplified comparison:
| Feature | MPO Connector | MTP Connector |
|---|---|---|
| Design Type | Standardized | Proprietary |
| Keying Mechanism | Standard | Precision |
| Performance | Basic | Enhanced performance |
| Cost | Generally lower | Higher due to specifications |
Practical Applications of MPO Connectors
MPO connectors are widely utilized in high-density applications such as data centers, telecommunications networks, and within enterprise network infrastructures. These connectors help in maximizing the interconnect density while maintaining effective cabling management.
Here are some practical scenarios where understanding MPO wiring and color code proves beneficial:
- Data Centers: MPO connectors facilitate the rapid deployment of high-speed networks.
- Telecommunications: Used in trunk cables that connect multiple fiber optic lines.
- Enterprise Networks: Helps manage the space and connections in network switches and routers.
Common Misconceptions
One of the prevalent misconceptions is that all MPO connectors function similarly and use identical color codes, which is not the case. The fiber count, type (single-mode vs. multimode), and connection type all influence the specifications and wiring codes. Understanding these distinctions is critical for appropriate installation and maintenance.
Conclusion
In summary, MPO fiber connector wiring color codes are a crucial element for the effective deployment and maintenance of fiber optic networks. By grasping the significance of these codes and adhering to established standards, technicians can ensure that installations are optimal, reliable, and efficient. For those interested in deepening their knowledge on this topic, delving into fiber optic connector specifications and standards can be beneficial.
Rotating USBFAQs
Q1: What does MPO stand for?
A1: MPO stands for Multi-fiber Push On, a type of connector used in fiber optic technology.
Q2: How can I identify different fiber strands in an MPO connector?
A2: Each fiber strand corresponds to a specific color code, making it easy to identify them according to the standard coloring scheme.
Q3: Why is color coding important in MPO connectors?
A3: Color coding is essential for ensuring the correct arrangement of fibers, which affects network performance and troubleshooting ease.
Q4: Are MPO and MTP connectors interchangeable?
A4: While similar, MPO and MTP connectors differ in specifications and performance; MTP connectors typically offer enhanced features.
Q5: What should I do if I encounter an issue with MPO connections?
A5: Checking the connector alignment, confirming color codes, and testing for faults can help diagnose issues with MPO connections.
