Understanding Internal PC Speaker Wire Color Codes
In the realm of personal computing, internal connections often go unnoticed but are crucial for the seamless operation of your system. Among these connections, PC speaker wires play an essential role, serving as the audio output for system notifications, beeps, and other alerts. However, a common problem many users encounter is confusion surrounding the color codes used for these speaker wires. Misidentifying wire polarity can lead to malfunction, errors, or even damage to your components, making it important to understand the correct wiring configuration.
Color coding for speaker wires follows certain conventions, but variations exist across manufacturers that can lead to misunderstandings. The misconceptions about swapping positive and negative wires can lead to a host of audio issues. In this article, you will learn the standard color codes for internal PC speaker wiring, how to decode various configurations, and tips to ensure proper connections for optimal performance.
How Internal PC Speakers Work
Internal PC speakers typically require a simple two-wire configuration to operate. This configuration generally involves one wire carrying positive voltage and another wire connected to ground. Understanding how these wires function helps clarify the importance of proper color coding.
The Wiring Basics
- Power Supply: Internal speakers often receive +5V from the motherboard.
- Ground Connection: The ground wire returns the current to complete the electrical circuit.
Most systems employ a dedicated speaker header on the motherboard, where the speaker wires connect. It is critical to connect these wires correctly to ensure that the speakers receive the right power and function properly.
You may also like

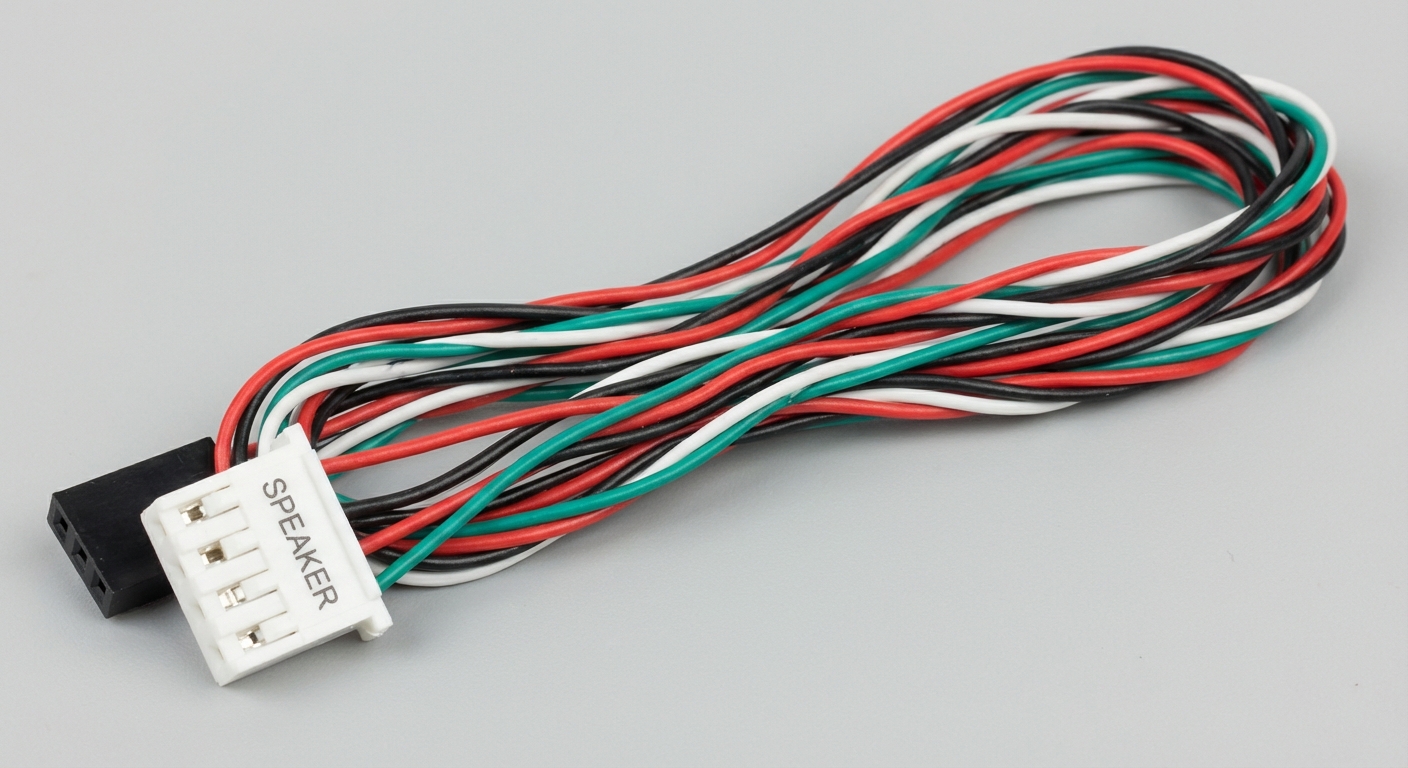

Common Color Codes for Internal PC Speakers

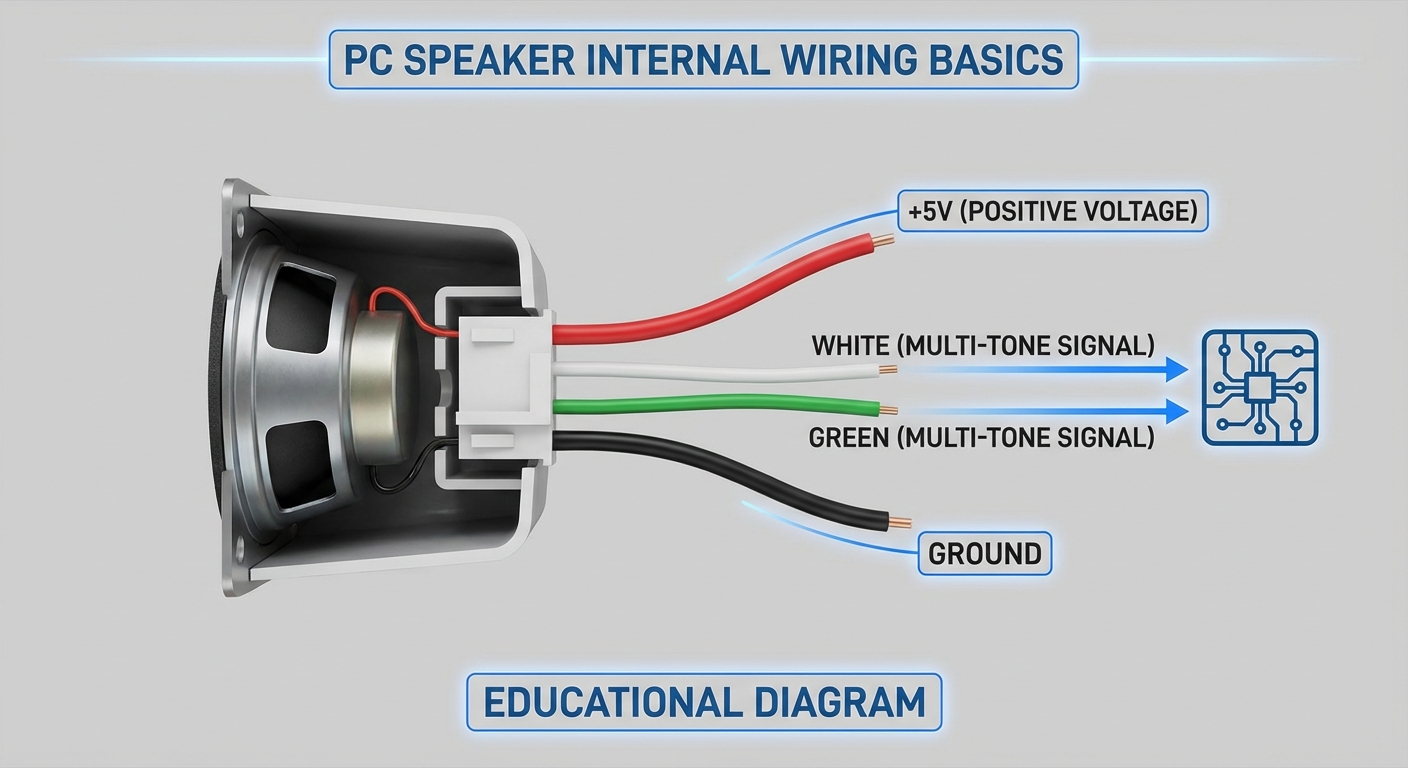

While each manufacturer might adopt slightly different color coding schemes, there are prevailing standards widely accepted in the industry. The most common color scheme includes:
- Red Wire: Positive voltage (+5V)
- Black Wire: Ground
Some motherboards may include additional wires, typically for a more complex audio setup or to provide visual feedback through a multi-tone speaker. In these instances, you may encounter:
- White Wire: Another positive wire for multipurpose speakers.
- Green Wire: A secondary ground for enhanced speaker configurations.
Comparative Overview of Speaker Wire Color Codes
| Color | Standard Use | Service Applications |
|---|---|---|
| Red | Positive (+5V) | Standard PC speakers |
| Black | Ground | Standard PC speakers |
| White | Positive (occasionally used) | Multi-tone systems |
| Green | Ground (secondary) | Advanced setups |
Common Misconceptions and Troubleshooting
One prevalent misconception is that any color configuration will function interchangeably. Mixing up positive and negative leads can result in a host of issues, including:
- No sound output
- Wrong tones or continuous beeping
- Potential damage to the motherboard or speaker
If your internal speaker is not functioning correctly, follow these diagnostic steps:
- Check the motherboard manual for the speaker header pinout configuration.
- Ensure that the red wire connects to the +5V pin of the speaker header.
- Confirm that the black wire is connected to the ground pin.
- If there are additional wires, ensure these are also correctly aligned based on the specific motherboard setup.
Once all connections are verified, restart your computer to check if the speaker functions as expected.
When to Seek Further Help
If issues persist even after following the proper color codes, it may be a good idea to consult with the computer manufacturer’s support page. For further guidance on audio-related configurations and troubleshooting, consider exploring this comprehensive guide by ASUS, which can provide specific insights based on motherboard models.
Frequently Asked Questions
Q: What color wires are used for internal PC speakers?
A: Typically, red is used for positive (+5V) and black for ground in internal PC speaker connections.
Q: Can I connect my speaker wires in any configuration?
A: No, incorrect connections can lead to sound issues or damage. Always follow the standard color codes.
Q: What if my internal speaker has more than two wires?
A: Additional wires may signify a more complex system; refer to your motherboard manual for correct wiring instructions.
Q: How can I tell if my speaker is working correctly?
A: If connected properly, you should hear system sounds upon boot-up. Listen for beeps or alerts that indicate the speaker is functioning.
Q: Should I mix speaker wires from different systems?
A: It’s not advisable; different systems might have different wiring standards which can lead to compatibility issues.
Conclusion
Understanding the color codes for internal PC speaker wires is crucial for anyone looking to build, upgrade, or troubleshoot their computer. Using the proper wiring configurations safeguards against functional errors and potential damage. For further reading, explore topics related to audio configurations and troubleshooting techniques in PC hardware.
