Understanding Gigabyte Motherboard Status Light Color Codes
If you’ve ever built or upgraded a PC, you’re likely familiar with the array of lights that adorn the motherboard, particularly those from Gigabyte. These lights serve as important indicators of the system’s health and operational status. Unfortunately, many users often overlook these signals or find them confusing, leading to unnecessary stress when something goes wrong with their setup. This article aims to clarify the meanings behind the various color codes displayed by the status lights on Gigabyte motherboards. Understanding these codes is crucial as they provide initial diagnostics that can save time and enhance your troubleshooting efforts. A common misconception is that a single color indicator, such as red or amber, always signifies a ‘critical’ failure, when in fact it can represent a range of issues from minor to severe. By the end of this article, you’ll be equipped with the knowledge to interpret these lights accurately and respond accordingly.
How Status Light Indicators Work

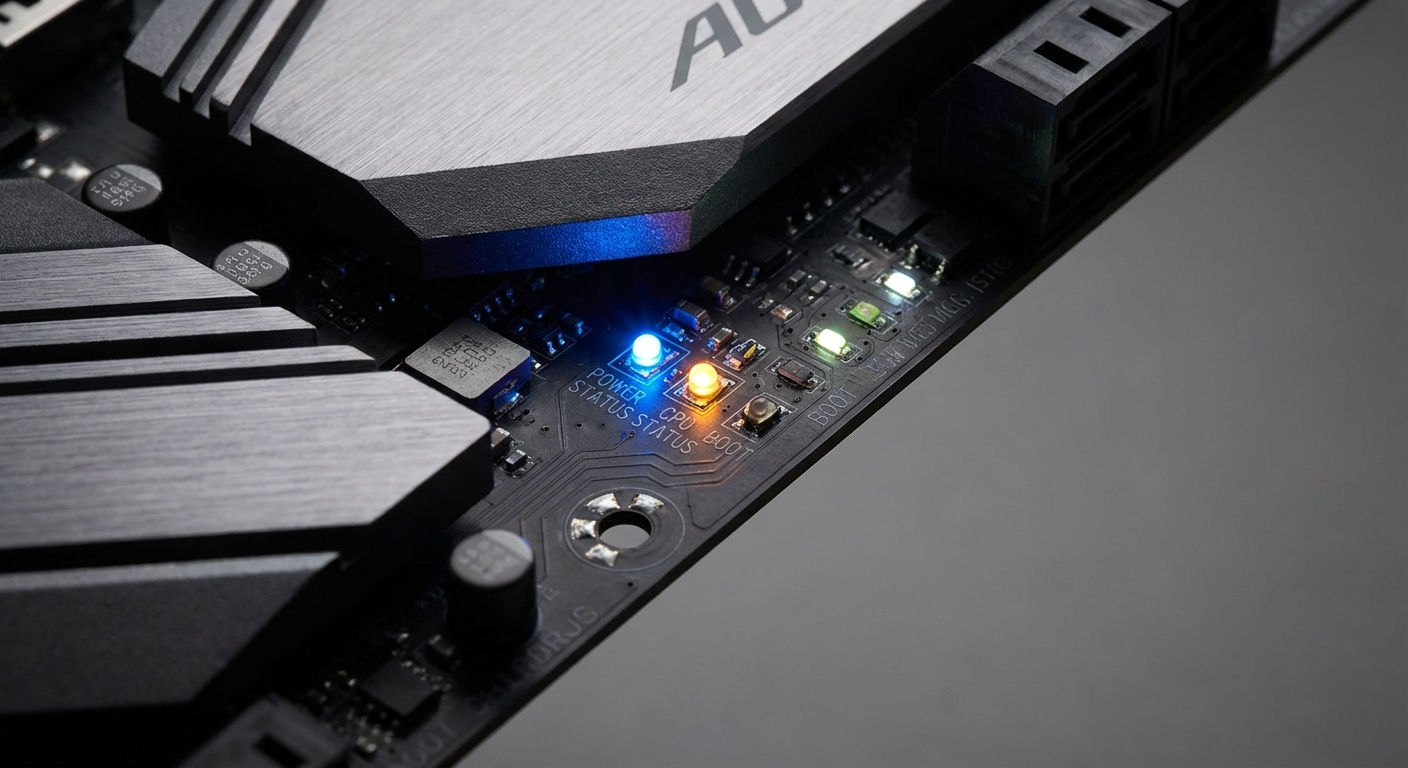

Gigabyte motherboards utilize an innovative array of lights to offer real-time feedback on the system’s operational status. The indicators are specifically designed to alert users to specific hardware states. Two primary types of status indicators are most commonly found:
- Power Status LED: Indicates whether the system is powered on, in standby mode, or shut down.
- Component Status LEDs: Identify issues with the CPU, RAM, graphics card, or storage drives.
Power Status LED Codes

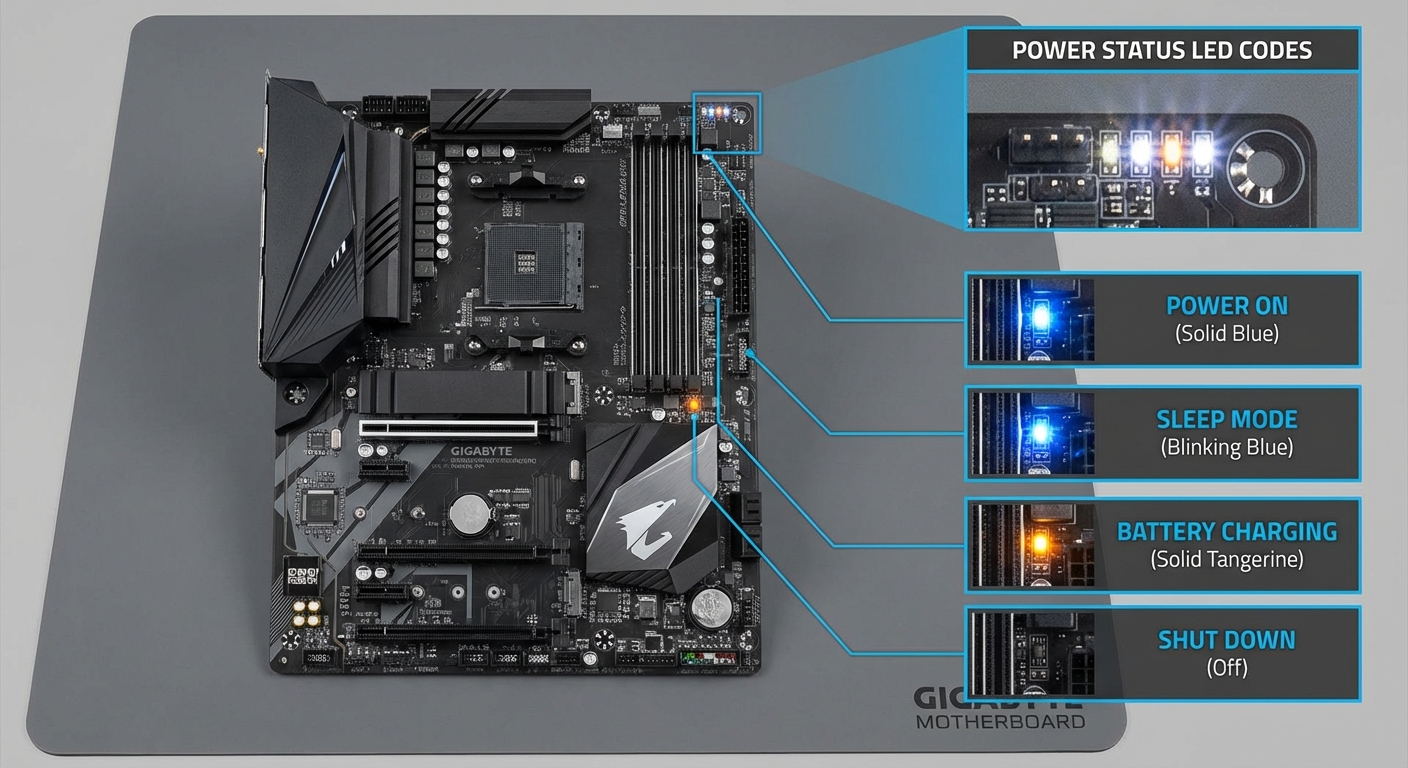

The Power Status LED typically features blue and tangerine colors. Here’s what they mean:
| Color | Status |
|---|---|
| Blue | Power on |
| Blinking Blue | System in Sleep mode |
| Tangerine | Battery charging |
| Off | Shut down or in hibernate mode |
Component Status LED Codes
In addition to power status, Gigabyte motherboards feature specific diagnostic lights for key components: CPU, DRAM, VGA (graphics card), and BOOT. Each can help identify malfunctions:
You may also like
- CPU LED: A constant amber light often indicates a problem with the CPU. For example, users have reported seeing a solid amber light on the GPU’s motherboard when there is no video output, suggesting a CPU issue or loose connections source.
- DRAM LED: If this light is illuminated, it usually points to RAM-related issues. Common problems include mis-seated modules or incompatible RAM.
- VGA LED: A lit VGA indicator could mean that the GPU is not detected. This could stem from a faulty GPU, improper seating, or power supply issues.
- BOOT LED: Activation of this LED signifies that there is no bootable drive detected.
Troubleshooting Common Issues
When faced with illuminated lights on your motherboard, an effective troubleshooting process can help pinpoint and resolve the problem:
- Identify which LED is lit and note the color.
- Refer to the Gigabyte manual for specific interpretations of that light.
- Check the physical connections of the corresponding hardware components (e.g., reseat RAM, check power cables to the GPU).
- If applicable, consult forums like r/pcmasterrace or Linus Tech Tips for similar experiences and fixes.
- Update or reset the BIOS settings as a precautionary measure if the problem persists.
Common FAQs About Gigabyte Motherboard Status Lights
What does a red LED on my Gigabyte motherboard indicate?
A red LED generally indicates an issue with the CPU, RAM, graphics card, or a boot drive error.
Why is my CPU status LED amber?
An amber light on the CPU status LED usually means that your motherboard isn’t detecting the CPU properly, which could be due to various reasons including poor seating or hardware malfunction.
What should I do if the BOOT LED is on?
If the BOOT LED is lit, it signifies that the motherboard cannot find a boot device. Verify the connections and presence of the boot drive.
How can I fix a blinking blue LED?
A blinking blue LED indicates that the system is in Sleep mode. If you want to resolve this, simply wake the system or check power settings to adjust behavior.
Where can I find the manual for my Gigabyte motherboard?
The manual can typically be found on the official manufacturer’s website for support at GIGABYTE U.S.A.
Conclusion
Understanding the significance of the status light color codes on Gigabyte motherboards can greatly enhance your PC troubleshooting capabilities. By being aware of what each light means, users can take proactive steps to address hardware issues instead of jumping to conclusions. If you’re interested in further topics related to PC hardware and troubleshooting, exploring BIOS settings and under-the-hood diagnostics could further enrich your understanding.
