Understanding ASUS Motherboard Q-LED Color Codes
When building or troubleshooting a PC, one of the essential elements to consider is the motherboard’s diagnostic indicators. ASUS motherboards, in particular, utilize a feature known as Q-LED, which provides users with visual cues regarding the status of critical components during the Power-On Self-Test (POST) phase. This article addresses the specific question: what do the Q-LED color codes mean, and how can users leverage this feature to diagnose problems effectively? Understanding Q-LED codes is crucial for quickly identifying faulty components, which can save time and frustration during troubleshooting efforts. A common misconception is that a lack of lights indicates no issues; however, the Q-LED system is designed to cycle through various states and only identifies faults when specific lights stay on, indicating persistent problems. In this article, readers will learn about the different color codes and their meanings, how to interpret them, and practical troubleshooting steps to address any issues that arise.
How Q-LED Works
The Q-LED system comprises a series of LED indicators situated on the motherboard, typically near the 24-pin power connector or memory slots. Each light corresponds to critical components: CPU, DRAM, Graphics Card, and Storage Devices (HDD/SSD). During the boot-up process, these LEDs will illuminate in specific colors, signaling whether the respective component is functioning correctly.

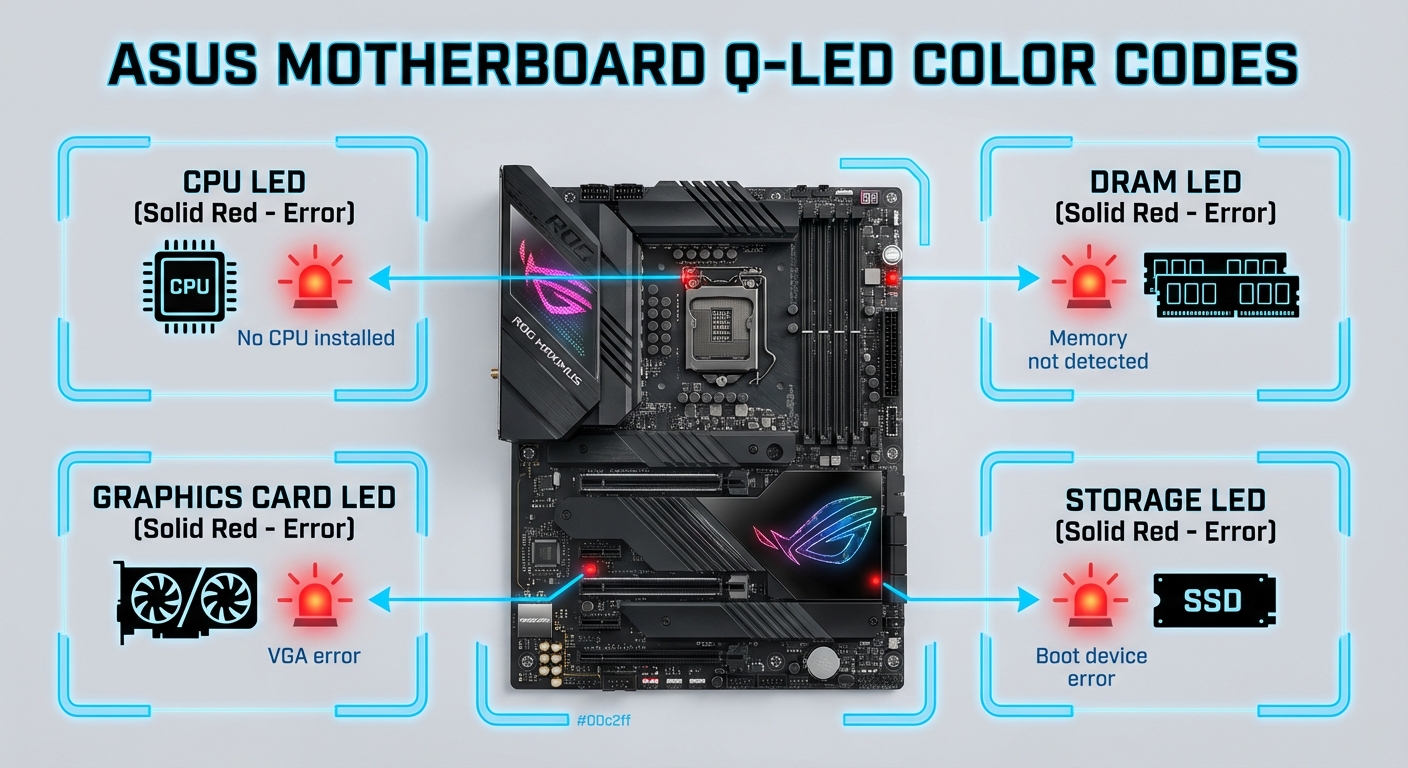

Q-LED Color Codes Explained
Here’s a breakdown of the various Q-LED indicators and their significance:
- CPU LED:
- Solid Red: Indicates no CPU detected or a faulty CPU.
- Off: CPU is functioning correctly.
- DRAM LED:
- Solid Red: No memory or a memory fault is detected.
- Off: Memory modules are functioning correctly.
- Graphics Card LED:
- Solid Red: No graphics card detected or a graphics card fault.
- Off: Graphics card is functioning as expected.
- Storage LED:
- Solid Red: No storage device detected or a storage fault.
- Off: Storage devices are operating normally.
Common Q-LED Scenarios and Troubleshooting
During the POST sequence, ASUS motherboards may display various Q-Codes and trigger specific LEDs. If you encounter a solid light on one of the Q-LEDs, follow these troubleshooting steps:
You may also like
CPU-Related Issues
- Ensure the CPU is properly seated in the socket.
- Check for any bent pins on the CPU or socket.
- Inspect the power connection to the CPU.
DRAM-Related Issues
- Verify that the RAM modules are fully pushed into their slots.
- Try booting with a single RAM stick in different slots.
- Check for compatibility issues between the RAM and motherboard.
Graphics Card Issues
- Confirm that the graphics card is firmly connected to the PCIe slot.
- Inspect the power connectors to the graphics card.
- Test with another graphics card if available.
Storage Device Problems
- Ensure that SATA or M.2 connections are secure.
- Test the storage device in another computer, if possible.
- Check the BIOS settings to ensure the storage device is recognized.
Dynamic Q-Code Display during Boot
It’s important to note that during the initial boot process, ASUS motherboards will cycle through various Q-Codes and LED indicators. Some users may worry if they see different colors or codes; this is usually normal behavior. The motherboard only indicates an error if the light remains on for an extended period. For instance, the ASUS ROG Dark Hero motherboard shows a solid white Q-Code 9E, indicating readiness for OS boot when all diagnostics are clear.
FAQs
Q: What does it mean if all Q-LED lights are off?
A: If all Q-LED lights are off, it indicates that the motherboard is not receiving power or there is a significant hardware failure.
Q: Can I change the Q-LED colors?
A: No, the Q-LED colors are fixed per the motherboard design—to help users quickly identify component issues.
Q: Why does my motherboard cycle through many Q-Codes?
A: This cycling is normal, as the motherboard checks different subsystems. An issue is flagged only if a Q-Code remains displayed for a significant time.
Q: What should I do if my Q-LED stays red?
A: A solid red Q-LED indicates an issue with the corresponding component; refer to the troubleshooting steps specific to that hardware.
Q: Where can I find detailed information specific to my ASUS motherboard?
A: You can access detailed specifications and troubleshooting resources through the ASUS Support Center.
Conclusion
Understanding the Q-LED color codes on ASUS motherboards is vital for efficient troubleshooting and ensuring each component’s proper operation. By interpreting these color signals, users can rapidly diagnose issues without the need for extensive hardware expertise. For further related topics, consider exploring troubleshooting guides for specific ASUS motherboard features.
